Heavy Metal Detection in Scorpaena Porcus Linnaeus, 1758 from Sinop Coast of the Black Sea and Potential Risks to Human Health

Introduction

Seafood especially fish species are consumed high in the Black Sea coast since they are sources of energy and protein with high biological value, and contribute to the intake of essential nutrients, and vitamins A and D, with well-being benefits.^1,2 Marine organisms are exposed to pollutants like toxic chemicals in contaminated coastal ecosystem. These chemicals off the anthropogenic sources and activities are frequently let into coastal areas and especially non-essential metals are major well-being threat on account of their poisonousness, extended continuity, bioaccumulation, and bio-magnifications in the food-web. Non-essential metals such as Pb, Cd, As and Hg can reason for brain and central nervous system harm.^3-8 They are very crucial to determine and monitor metal amounts in fish, the fact that metal ions can readily pile up in their edible tissues. Coastal ecosystems are contaminated by pollutants, industrial wastes, petroleum products, paints, fishing and touristic activities, domesticated and farming drains in the form of pieces, inorganic and organic mixtures. These metal ions gathering in fish become considerable and eventually toxic. Because of fish is one of the major diets to be consumed for in good health, hence, heavy metals in edible tissues of fish threaten people health.

Coastal ecosystems are much sensitive to heavy metal contaminants specifically; little fish get enriched with the taken substances. Thus, it should be used for bio monitoring studies.

Turkey is encircled with four different seas and fishing is one of the largest sources of income for the country⁹ and the Black Sea has a great importance in terms of fishing resources for Turkey. In the last half century, the Black Sea has undergone significant changes triggered by human activities and exposed to a severe pollution. Pollutants such as heavy metals and certain synthetic chemicals are easily absorbed with food, but they are not easily removed, and even low organisms in the food chain can be affected.^10-12 In very recent review it is well documented that heavy metals can be extremely toxic even at low concentrations.¹³ Heavy metals are quickly absorbed in sediment particles suspended in the coastal water, which settlement in the floor.^14,15 Marine organisms accumulate heavy metals to levels many times higher than those in water or sediment^16-19 and they can reach dangerous levels in fish species. Scorpaena porcus Linnaeus, 1758 has a native stock in the Black Sea and located in various habitats containing seagrasses, sandy, muddy and rocky substrates.²⁰ It lives a solitary and sedentary life and feeds on small fishes (gobies, blennies), crustaceans and other invertebrates.²¹ S. porcus is an important commercial fishes for the Black Sea and also Sinop which is one of the most important fishing spots of the Black Sea and this species is susceptible to chronic coastal pollution.²⁰

The current study was aimed to provide information on heavy metal amounts in the dorsal (edible) tissues of commercial demersal Black Scorpionfish existing in Sinop fish markets and to appraise the probable risk related to their consumption. The amounts of mercury (Hg), arsenic (As), cadmium (Cd), lead (Pb), copper (Cu) and zinc (Zn) were determined in the muscles of S. porcus from Sinop shores. The estimated daily intakes (EDI) and hazarded quotients (HI) in edible tissues of fish were also calculated to detect the welfare threats owing to the consumption of probable contaminated fish.

Materials and Methods

Samples and sample preparation

The Black Scorpionfish specimens were purchased from haphazard commercial market bound up with the availability of the species for sale. A total of fifty specimens were purchased during the fishing season in 2016 from Sinop shores of the Black Sea (Figure 1). The total lengths (cm) and the body weights (g) of each fish individuals were measured and then were washed with deionized water, sealed in polyethylene bags and kept in a freezer at -21℃ until metal analysis (Figure 2). All plastic and glassware used were rinsed and soaked in 10% (v/v) HNO₃ overnight. They were rinsed with deionized water and dried prior using. All acids and oxidants were of high quality from Merck, Germany. The samples digested with Suprapur® HNO₃ using a microwave digestion system (Milestone Systems, Start D 260) for analysis. Fish muscles were analysed by an ICP-MS, Agilent Technologies, 7700X and analytical quality was controlled with certified reference material NRCC-TORT-2 lobster hepatopancreas.

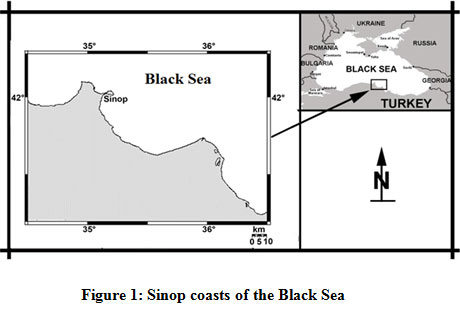

Figure 1: Sinop coasts of the Black Sea. Click here to View figure



Assessments hazard index (HI) of heavy metals in fish

Danger from heavy metals intake right ingestion may be characterized using a hazard index (HI) as the rate of the estimated daily intakes (EDIs mg/kg of body wt. per day) and the reference dose (Rf. D. mg/ kg per day). The HI was found by employing the equation:

HI = EDI/ Rf. D.

If HI > 1.0, the EDI of a certain metal pass over the Rf. D., so indicating that there exists a possible hazard metal. It counts on both the metal levels and the quantity of consumption of fish. The EDI of chemicals was found employing the following equation:

EDI = C _metal ×W / b. wt.

Where

C _metal is the amounts of the metals in edible tissues of fish; W appears for the daily mean intake:  it is given as 17 g/day for adults²²; b. wt. is the body weight of 70 kg for adults.

Figure 2: Scorpaena porcus from Sinop coasts of the Black Sea. Click here to View figure



Results

Mean lengths (cm) and weights (g) S. porcus specimens were measured as 15.12±2.34 and 69±8, respectively. The recovery percentages results ranged from 96% to 104%. Mean metal levels in Black Scorpionfish from Sinop coasts are given in Figure 3. The heavy metal amounts found in the dorsal part of Scorpionfish varied for Hg: Nd-0.012, As: 0.06-0.09, Cd:  Nd-0.01, Pb: Nd-0.02, Cu: 0.05-0.14 and Zn: 0.9-3.22 mg/kg wet wt. When the maximum values of the metals were taken into consideration, the order of the metal concentrations was found as Zn>Cu>As>Pb>Hg>Cd.

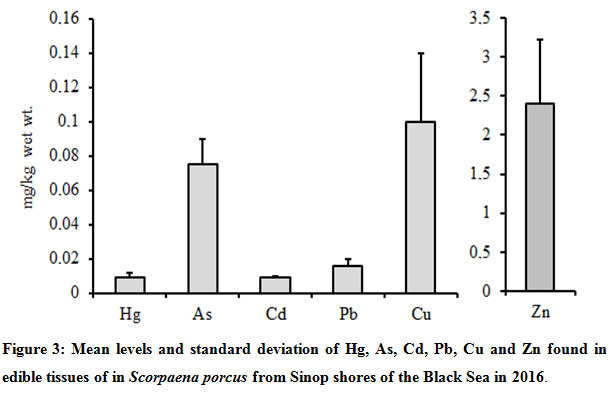

Figure 3: Mean levels and standard deviation of Hg, As, Cd, Pb, Cu and Zn found in edible tissues of in Scorpaena porcus from Sinop shores of the Black Sea in 2016. Click here to View figure



In the present study, all studied metals in Scorpion fish were quite low and did not exceed the allowable limit, so there is no hazard to S. porcus for consumers. The amounts of the metals in Black Scorpionfish were under the limits set by international and national regulations (Table 1). Non-essential metals like Hg, Cd, As and Pb are heavy and toxic chemical in fish, the existing of these metals in fish may have threat on people health. As is toxic and is found at quite low levels in fish. The United Kingdom previously imposed a limit of 1 mg/kg for As in fish with separate limits feasible to certain seafood categories. This arrangement was revoked in 2002. There is no maximum level set for arsenic in foods at EU level. Cu and Zn are essential metals to all biota and they make health threat when had in large amount exceeded the allowable limits.

Table 1: The allowable limits of the metals in the edible fish tissues (mg/kg wet weight)

Standards	As	Cd	Pb	Cu	Zn	Hg
MAFF Seafood Safety (Fish Product)23	—	<0.2	2.0	20	50	—
The European Commission Regulation24	—	0.05	0.2	—	—	0.5
Georgian Food Safety Rules 25	2.0	0.2	1.0	10	40	0.5
Turkish Food Codex26	—	0.1	0.4	20	50	0.5
GAIN Report Russian Federation27	2.0	0.2	1.0	10	40	0.5
The European Commission Regulation28	—	0.05	0.3	—	—	0.5
Turkish Food Codex29	—	0.05	0.3	—	—	0.5



Fish may concentrate heavy metals in their edible tissues, becoming extremely toxic in the course. A number of land-based waste products, notably toxic heavy metals, exert a direct effect on commercial fish stocks. Especially non-essential metals such as Hg, As Cd and Pb turn into a concentrated structure thanks to the food-chains, posing a toxic risk to species in higher trophic levels. These predators may have levels of the heavy metals millions of times greater than the surrounding water. Eventually, people who are living in the coastal areas are the most affected by these pollutants.³⁰

Daily intake of metals and hazard index

The daily intakes (EDIs) of the metals were estimated taking into account the mean of metal in the edible tissues of S. porcus and the mean taken of that fish per day for adults as reported by United States Environment Protection Agency.³¹ Table 2 shows that (EDI) of toxic metals (Hg, Cd, Pb, As) and essential metals (Cu, Zn) for adults. They are significantly lower than the allowed limits of international and national regulations (Table 1). Estimated hazarded indexes (HIs) of the metals suggest that the metals in fish samples do not pose any apparent danger to the population, where the HIs of all the metals studied were below the value of 1³¹ as given by Table 2.

Table 2: Maximum metal levels (mg/kg wet wt.) in the dorsal tissues of Black Scorpionfish and EDIs and HIs values for consumers.

Metals	Max. levels	Rf. D. mg/kg body wt. /day	EDI mg/kg body wt. /day	Hazard index (HI)
Hg	0.012	0.0003	0.00000204	0.0068
As	0.09	0.0003	0.0000153	0.051
Cd	0.01	0.001	0.0000017	0.0017
Pb	0.02	0.002	0.0000034	0.0017
Cu	0.14	0.04	0.0000238	0.000595
Zn	3.22	0.3	0.0005474	0.001824667



The comparison of heavy metal concentrations in muscle tissues in S. porcus with other studies was given in Table 3. In the Sinop coasts of the Black Sea, the maximum metal concentrations reported for Zn, Cu and Cd by Bat et al.³², for As by Turk Çulha et al.³³ Maximum Hg concentration was found in this study for Sinop but in the entire Black Sea maximum Hg concentration reported by Rudneva et al.³⁴ in Sevastopol. The data obtained from the studies performed in the Sinop coasts were taken into consideration, the maximum metal concentrations in the Black Scorpionfish were under the limits set by international and national regulations. However Uluozlu et al.³⁵ reported that the Zinc levels in S. porcus were found to be higher than legal limits in the Aegean Sea.

Table 3: Comparison of heavy metal concentrations in muscle tissues in S. porcus with the other studies conducted in the Black Sea, Marmara Sea and Aegean Sea (ND: Not Detected)

Location	d.w./w.w.	unit	Metals						References
			Hg	As	Cd	Pb	Cu	Zn
Black Sea- Sinop	w.w.	mg/kg	ND-0.012	0.06-0.09	ND-0.01	ND-0.02	0.05-0.14	0.9-3.22	This Study
Black Sea- Sinop	w.w.	mg/kg	–	–	0.02-0.023	0.03- 0.07	0.88-1.7	7.44-12.3	32
Black Sea- Sinop	w.w.	mg/kg	0.01± 0.00	0.14± 0.09	ND	0.04± 0.03	0.07± 0.009	–	33
Black Sea- Sevastopol	–	mg/kg	0.06± 0.01	0.80± 0.10	0.04± 0.01	0.16± 0.04	0.60± 0.10	5.14± 1.25	34
Marmara Sea-Yalova	w.w.	mg/kg	–	–	0.20± 0.07	0.83± 0.19	5.29± 1.88	26.2± 4.31	9
Aegean Sea	d.w.	µg/g	–	–	0.80± 0.06	0.66± 0.06	0.73± 0.06	95.3± 8.7	35
Aegean Sea-İzmir	w.w.	µg/g	–	–	0.005-0.04	0.01- 0.08	0.03-0.09	0.92-2.23	36



As a result, the concentrations of heavy metals in S. porcus in this study were lower than the other studies conducted in the Sinop coasts (except for Hg). Considering public health in adult persons with respect to the investigated heavy metals, the estimated daily intakes (EDIs) did not exceed the tolerable intakes. Therefore, consuming S. porcus does not involve any danger to the public health in terms of studied heavy metals.

Acknowledgements

This study was presented as a poster with English abstract only in the International Symposium of Ecology 2018, Kastamonu University during 19-23 June 2018 in Kastamonu, Turkey.

References

1. Cohen J. T., Bellinger D. C., Connor W. E., Kris-Etherton P. M., Lawrence R. S., Savitz D. A., Shaywitz B. A., Teutsch S. M., Gray G. M. A quantitative risk–benefit analysis of changes in population fish consumption. American Journal of Preventive Medicine. 2005;29(4):325–334.
   CrossRef
2. Domingo J. L., Bocio A., Falcó G.,  Llobet J. M. Benefits and risks of fish consumption Part I. A quantitative analysis of the intake of omega-3 fatty acids and chemical contaminants. Toxicology. 2007;230:219–226.
   CrossRef
3. EFSA NDA Panel (EFSA Panel on Dietetic Products, Nutrition and Allergies). Scientific opinion on health benefits of seafood (fish and shellfish) consumption in relation to health risks associated with exposure to methylmercury. EFSA J. 2014;12(7):761.
4. EFSA Panel on Contaminants in the Food Chain (CONTAM). Scientific opinion on lead in food. EFSA J. 2010;8 (4), 1570.
   CrossRef
5. EFSA. Cadmium dietary exposure in the European population. EFSA J. 2012. 10(1);2551:37 pp.
6. EFSA Panel on Contaminants in the Food Chain (CONTAM). Scientific opinion on the risk for public health related to the presence of mercury and methylmercury in food. EFSA J. 2012;10(12):2985.
7. EFSA Scientific Committee. Statement on the benefits of fish/seafood consumption compared to the risks of methylmercury in fish/seafood. EFSA J. 2015;13(1):3982.
   CrossRef
8. EFSA Panel on Contaminants in the Food Chain (CONTAM). Scientific opinion on arsenic in food. EFSA J. 2009;7 (10):1351.
   CrossRef
9. Türkmen M., Türkmen A., Tepe Y., Ateş A., Gökkuş K. Determination of metal contaminations in sea foods from Marmara, Aegean and Mediterranean seas: twelve fish species. Food Chemistry, 2008;108.2:794-800.
   CrossRef
10. Bat L. Heavy metal pollution in the Black Sea. In: Düzgüneş E., Öztürk B., Zengin M. (Eds.). Turkish Fisheries in the Black Sea. Published by Turkish Marine Research Foundation (TUDAV), 2014.  Publication number: 40, ISBN: 987-975-8825-32-5 Istanbul, Turkey. 71-107.
11. Bat L., Üstün F., Öztekin H. C. Heavy metal concentrations in zooplankton of Sinop coasts of the Black Sea, Turkey. Marine Biological Journal. 2016;1(1):5-13.
    CrossRef
12. Bat L., Sezgin M., Sahin F. Heavy metal contamination of aquatic resources from Turkish Black Sea waters. Journal of Environmental Protection and Ecology. 2018;19(2):558-563.
13. Bat L., Arıcı E. Chapter 5. Heavy Metal Levels in Fish, Molluscs, and Crustacea From Turkish Seas and Potential Risk of Human Health. In: Holban AM, Grumezescu AM. (Eds.) Handbook of Food Bioengineering, Volume 13, Food Quality: Balancing Health and Disease. Elsevier, Academic Press, 2018. ISBN: 978-0-12-811442-1, pp. 159-196. http://dx.doi.org/10.1016/B978-0-12-811442-1.00005-5.
    CrossRef
14. Bat L., Özkan E. Y. Chapter 13. Heavy metal levels in sediment of the Turkish Black Sea coast. In: Bikarska I, Raykov V, Nikolov N. (Eds.) Progressive Engineering Practices in Marine Resource Management. IGI Global book series Advances in Environmental Engineering and Green Technologies (AEEGT), 2015.  ISSN: 2326-9162; eISSN.  2326-9170;399-419.
15. Bat L., Öztekin A., Şahin F., Arıcı E., Özsandıkçı U. An overview of the Black Sea pollution in Turkey. MedFAR, 2018. 1(2):67-86.
16. Bryan G. W. Some aspects of heavy metal tolerance in aquatic organisms. In: A.P.M. Lockwood (Ed.), Effects of Pollutants on Aquatic organisms. Cambridge University Press. 1976;7-34.
17. Phillips D. J. H., Rainbow P. S. Biomonitoring of trace aquatic contaminants. Environmental Management Series, Chapman and Hall, London. 1994. 371.
18. Bat L., Gökkurt O., Sezgin M., Üstün F., Sahin F. Evaluation of the Black Sea Land Based Sources of Pollution the Coastal Region of Turkey. The Open Marine Biology Journal. 2009;3:112-124.
    CrossRef
19. Boran M., Altinok I. A review of heavy metals in water, sediment and living organisms in the Black Sea. Turkish Journal of Fisheries and Aquatic Sciences. 2010;10(4):565-572.
    CrossRef
20. IUCN. The IUCN Red List of Threatened Species. Version 2017-3. <http://www.iucnredlist.org>. 2017. Accessed date: 12.09.2018.
21. Froese R., Pauly D. Editors. FishBase. World Wide Web electronic publication. www.fishbase.org 2018. Accessed date: 30.03.2018.
22. TUIK. Turkish Fishery Statistics. www.tuik.gov.tr. 2016. Accessed date: 30.03.2018.
23. MAFF. Monitoring and surveillance of non-radioactive contaminants in the aquatic environment and activities regulating the disposal of wastes at sea, 1993.  Directorate of Fisheries research, Lowestoft; 1995. Aquatic Environment Monitoring Report, No.44.
24. EC (COMMISSION REGULATION). Setting maximum levels for certain contaminants in foodstuffs. The European Commission Regulation; 2001. No 466/2001.
25. Georgian Food Safety Rules. Fish, other river/sea products and products made from them. The Minister’s Decree 16/08/2001 N301/n for Health, Labour and Social Affairs; 2001. SanPiN-2.3.2.560-96.
26. TFC (Turkish Food Codex). Notifications about determination of the maximum levels for certain contaminants in foodstuffs of Turkish Food Codex (in Turkish). Official Gazette of Republic of Turkey; 2002. Notification No: 2002/63, Issue: 24885.
27. GAIN (Global Agriculture Information Network) Report. Russian Federation Sanitary/ Phytosanitary/ Food Safety Russian Sanitary Rules and Norms; 2002. GAIN Report #RS2010. SanPiN-96. USDA Foreign Agricultural Service. Gossanepidnadzor Department of the Ministry of Public Health Care of Russia.
28. EC (COMMISSION REGULATION). Setting maximum levels for certain contaminants in foodstuffs. The European Commission Regulation; 2006. No 1881/2006.
29. TFC (Turkish Food Codex). Notifications changes to the maximum levels for certain contaminants in foodstuffs (in Turkish). Official Gazette of Republic of Turkey; 2009. Notification No: 2009/22, Issue: 27143.
30. Bat L. The Contamination Status of Heavy Metals in Fish from the Black Sea, Turkey and Potential Risks to Human Health. In: Sezgin M., Bat L., Ürkmez D., Arıcı E., Öztürk B. (Eds.) Black Sea Marine Environment: The Turkish Shelf. Turkish Marine Research Foundation (TUDAV) 2017. Publication No: 46, ISBN- 978-975-8825-38-7, Istanbul, TURKEY, pp. 322-418.
31. US-EPA. Risk based concentration table. United States Environmental Protection Agency, Philadelphia, PA, Washington, DC; 2000.
32. Bat L., Sezgin M., Üstün F., Şahin F. Heavy metal concentrations in ten species of fishes caught in Sinop coastal waters of the Black Sea, Turkey. Turkish Journal of Fisheries and Aquatic Sciences. 2012;12:371-376.
    CrossRef
33. Turk Çulha S., Yabanlı M., Baki B., Yozukmaz A. Heavy metals in tissues of Scorpionfish (Scorpaena porcus) caught from Black Sea (Turkey) and potential risks to human health. Environmental Science and Pollution Research. 2016;23(20):20882-20892.
    CrossRef
34. Rudneva I. I., Skuratovskaya E. N., Dorokhova I. I., Grab Y. A., Zalevskaya I. N., Omel’chenko S. O. Bioindication of the environmental state of marine areas with the use of fish biomarkers. Water resources, 2011. 38(1): 107-112.
    CrossRef
35. Uluozlu O. D., Tuzen M., Mendil D., Soylak M. Trace metal content in nine species of fish from the Black and Aegean Seas, Turkey. Food chemistry. 2007;104(2):835-840.
    CrossRef
36. Sunlu U., Egemen Ö. The Investigation of Heavy Metal Levels in Scorpacna porcus L. 1758 Living in Izmir Bay. Mediterranean Fisheries Congress. 9-11 April. İzmir. 1997;487-494.
