Effect of Different Micronutrients on Plant Growth, Yield and Flower Bud Quality of Broccoli (Brassica Oleracea Var. Italica)

Introduction

Broccoli (Brassica oleracea var. italic) which is one of the exotic vegetable introduced in India of the curciferae family is believed to be the first of the crops to evolve from the wild species of kale or cabbage and was cultivated by Romans. The first selection sprouting broccoli was probably made in Greece and in the pre- Christian era.⁸ Broccoli probably evolved in Roman times from wild or primitive cultivated forms of (Brassica oleracea) from the Mediterranean region. A remarkable diversity of cauliflower and broccoli-like vegetables developed in Italy. Broccoli is an edible green plant in the cabbage family whose large, flowering head is eaten as a vegetable.¹⁵ The word broccoli comes from the Italian plural of broccolo, which means “the flowering crest of a cabbage”, and is the diminutive form of brocco, meaning “small nail” or “sprout”. Broccoli is often boiled or steamed but may be eaten raw.⁴ A Broccoli consists of immature flowering buds which would commonly contain the energy for a plant to fruit it is very high nutrients and often termed as super- food. Broccoli which is nutritious among cole crops being rich in vitamin and minerals and boiling broccoli reduces the levels of suspected anti-carcinogenic compounds, such as sulforaphane.¹ Broccoli has about 14 times more beta-carotene a precursor of vitamin A than commonly cultivated cabbage.²¹ It has high amount of vitamin C and significant amount of potassium, folic acid and several phytochemicals. It can also be a good source of calcium and this can be enhanced if the soil is limed. It has anti carcinogenic properties and has been found useful for number of other diseases. Due to its high levels of vitamin C, beta carotene and fibre broccoli is a powerful antioxidant. High fibre content also believed to be of benefit in case of diabetes. It has as much calcium as milk, and is therefore an important source of nutrition for those with osteoporosis or calcium deficiencies.¹⁵

Manganese is necessary for chlorophyll formation for photosynthesis, respiration, and nitrate assimilation and for the activity of several enzymes. The form available to plants is the Mn⁺⁺ ion. Manganese availability is related more to soil pH than soil test manganese levels.

Boron is much required for cell division and development in the growth regions of the plant near the tips of shoots and roots. It also affects sugar transport and appears to be associated with some of the functions of calcium. Boron affects pollination and the development of viable seeds which in turn affect the normal development of fruit. Boron is taken up by plant roots as the neutral molecule HB₄O₇^– and BO₃^–.

A molybdenum function of enzyme nitrate reductive which is responsible for reduction of nitrate to nitrite during N assimilation in plants. Molybdenum is available to plants as the HMoO₄^– ion.

Zinc is important for the formation and activity of chlorophyll and in the functioning of several enzymes and the growth hormone, Auxin. The form of zinc available to plants is the Zn²⁺ ion. Zinc deficiency can occur on alkaline soils and sandy soils low in organic matter.^7,18

Materials and Methods

The experiment entitled “Effect of different micronutrients on plant growth, yield and flower bud quality of broccoli (Brassica oleracea var. Italica) cv. – Green Bud” was carried out at Research field, Department of Horticulture, Allahabad School of Agriculture, Sam Higginbottom Institute of Agriculture, Technology and Sciences (formerly known as Allahabad Agriculture Institute Deemed to-be University, AAI-DU) Allahabad during year 2014-2015. The Geographical area falls under sub-tropical climate and is located in between 25.87⁰ North latitude and 81.15⁰ E longitudes at an altitude of 78 meter above the mean sea level (MSL).

Soil characteristics of the experimental site

The experimental site is fairly level land with sandy loam soil of uniform fertility status with low clay and high send percentage. Composition soil sample were collected at random spots from depth of 0-30 cm and the sol was analyzed for pH, electrical conductivity (EC), organic carbon, available nitrogen, available phosphorous and available potassium are presented in table.

Table 1: Physical and chemical properties of soil of experimental site. (SHIATS, Allahabad)

S. No.	Particulars	Value(0-30 cm depth)		Method followed
Physical properties
1.	Sand		48.15%	Bouyoucos hydrometer method [5]
2.	Silt		20.30%
3.	Clay		30.50%
4.	Textural class		Sandy laom
Chemical properties
1.	Soil pH		6.89	Potentiometer
2.	EC(dsm-1 at 250 C)		0.21	Electrical Conductivity Meter
3.	Organic carbon		0.46%	Hydrochloric oxidation method [25]
4.	Available nitrogen (k ha-1)		214.6	Alkaline permangananate method [23]
5.	Available phosphorus (k ha-1)		36.64	Olsen’s Colorimetric method [16]
6.	Available potassium (k ha-1)		212.05	Flame Photometric method [9].
7	Available Zinc (mg/kg)		0.016	MDLs (Method Detection Limits)
8	Available Molybdenum (mg/kg)		0.08	MDLs (Method Detection Limits)
9	Available Boron (mg/kg)		0.020	MDLs (Method Detection Limits)
10	Available Manganese (mg/kg)		0.04	MDLs (Method Detection Limits)[2]



Experimental Design

Ten treatments having one variety were laid out in Randomized Block Design (RBD) with three replications. The treatments in each replication were allotted randomly. Ten treatments having one variety were tried in the experimental design. According to the treatment the micronutrients (B: Mo: Mn: Zn – 2: 0.5: 2.5: 3 kg/ha) are applied (Soil incorporate) before transplanting.

Treatment Combination

T₀     Control

T₁       Boron (B) (2 kg/ha)

T₂     Molybdenum (Mo) (0.5 kg/ha)

T₃     Manganese (Mn) (2.5 kg/ha)

T₄       Boron + Molybdenum (2 kg/ha +0.5 kg/ha)

T₅       Boron +   Manganese + Zinc (2 kg/ha + 2.5 kg/ha +3 kg/ha)

T₆       Molybdenum + Magnesium (0.5 kg/ha + 2.5 kg/ha)

T₇       Boron + Molybdenum + Manganese + Zinc (2 kg/ha +0.5 kg/ha+2.5 kg/ha+3 kg/ha)

T₈     Boron + Zinc (2 kg/ha+3 kg/ha)

T₉           Zinc (Zn) (3 kg/ha)

Micronutrients Combinations

S.N.	Micro-nutrients	Fertilizers source	% content	fertilizer Kg/ha	Micro-nutrient kg/ha	Per plot (mg)	Per plant (mg)
1	Boron	Borax	11	18.18	2	300	50
2	Molybdenum(Mo)	Sodium Molybdenum	39	1.28	0.5	80	13.33
3	Manganese (Mn)	Manganese sulphate	32	9.81	2.5	380	63.3
4	Zinc	Zinc Sulphate	23	13.04	3	450	75



Statistical analysis

The data on growth yield and quality components were subjected to Fisher’s method of analysis of variance (ANOVA), where the ‘F’ tests was significant for comparison of the treatment means, CD values were worked out at 5% probability level.²

Analysis of Variance (ANOVA)

Analysis of treatment for all treatments in Randomized Block Design was carried out. For testing the hypothesis the following ANOVA table was used.

Skeleton of ANOVA

Source of variation	d.f.	S.S.	M.S.S.	F.cal.	F(table) at Result5%
Due to replication	(r-1)	R.S.S.	R.S.S.r-1	M.R.S.S.M.E.S.S.
Due to treatment	(t-1)	T.S.S.	T.S.St-1	M.T.S.S.M.E.S.S.	(r-1) (t-1)
Due to error	(r-1) (t-1)	E.S.S.	E.S.S.(r-1) (t-1)	M.E.S.S.	F(t-1)(r-1)(t-1)
Total	(rt-1)	TSS	–	–	–



The significance and non-significance of the treatment effect was judged with the help of ‘F’ variance ratio test. Calculated ‘F’ value was compared with the table value of ‘F’ at 5% level significant. If the calculated value exceeds the table value, the effect was considered to be significant. The significant differences between the mean were tested against the critical differences at 5% level of significance. For testing the hypothesis, the ANOVA table was used.

Observational details

Five plants from each net plot were randomly selected and they were labeled. These plants were used for recording all morphological observations in respect of growth, yield and fruit bud quality of the crop. The details of the observations recorded are given below:

Pre- Harvest observations

• Plant Height (cm) (60 DAT)
• Number of leaves per plant (60 DAT)
• Plant Spread (cm) (60 DAT)

Post-Harvest Observations

• Diameter of the Flower Bud (cm)
• Flower Bud weight (g)
• Total head (bud) yield ha^-1 (q)

• Vitamin-C content in head (mg/100 g)
• Total Soluble Solid (T.S.S. ⁰ Brix)
• Fresh weight of plant (g)
• Root weight (g)

Results and Discussion

Pre- Harvest observations

Plant height

The results pertaining of the effect applied through different micronutrients on plant Height(cm) of broccoli at 60 DAT(Day after transplanting) are presented in table 1. The plant height at 60 DAT found maximum in T₅ (B + Mn + Zn) is 51.30 cm. followed by 48.99 in T₆ (B + Mo + Mn + Zn). The minimum was found in T₀ (control) 42.84 cm.^3,6

Number of leaves per plant

The data presented in table 1 clearly showed that the micronutrients played significant role in directly affecting the number of leaves per plant. The maximum number of leaves per plant was recorded statistically significant with micronutrients application of B+Mn+Zn (T₉), which was recorded (24.25) leaves, followed by T₉ (B + Mo + Mn + Zn) (22.92) leaves. The minimum number of leaves per plant (19.00) was noticed with control.^6,10

Table 1: Effect of different micronutrients on plant height, Number of leaves and plant spread at 60 DATof broccoli.

Treatment symbol	Treatment combination	Plant height (cm)	Number of leaves	Plant spread (cm)
T0	Control	42.84	19.00	43.89
T1	B	46.81	20.42	46.41
T2	Mo	45.53	21.33	44.09
T3	Mn	47.89	21.58	47.89
T4	B + Mo	45.37	21.83	45.54
T5	B +  Mn + Zn	51.30	24.25	52.83
T6	Mo +  Mn	48.03	22.08	49.06
T7	B + Mo + Mn  + Zn	48.99	22.92	46.15
T8	B + Zn	47.05	22.33	48.24
T9	Zn	47.47	22.50	49.15
S.Ed(±)		0.36	0.32	0.47
CD at 5%		0.75	0.67	0.98

Table 2: Effect of different micronutrients on post harvest Observation and quality parameters of broccoli.

Treatment symbol	Treatment combination	Bud diameter (cm)	Bud weight /  plant (g)	Head yield /hectare (q)	TSS (0brix)	Vitamin ‘c’(mg)	Fresh weight of per plant (g)	Root weight of per plant (g)
T0	Control	14.04	182.15	72.86	6.46	78.81	725.92	35.43
T1	B	14.53	238.32	95.33	6.67	81.81	754.12	42.09
T2	Mo	14.98	242.47	96.99	7.28	80.22	728.78	39.22
T3	Mn	15.35	241.77	96.71	7.00	84.74	835.77	41.62
T4	B + Mo	14.39	285.98	114.39	7.60	87.67	839.79	42.57
T5	B +  Mn + Zn	16.90	303.69	121.48	8.37	93.92	908.28	45.02
T6	Mo +  Mn	15.58	260.57	104.23	7.38	88.43	741.23	43.91
T7	B + Mo + Mn  + Zn	15.73	287.61	115.04	7.53	80.83	867.65	43.19
T8	B + Zn	16.28	261.82	104.73	7.68	81.24	826.00	43.52
T9	Zn	15.95	265.17	106.07	7.89	85.01	826.74	42.88
S.Ed(±)		0.50	6.37	2.55	0.15	0.97	18.51	0.46
CD at 5%		1.05	13.38	5.35	0.31	2.04	38.88	0.97

Plant Spread

The data on plant spread which was which was observed at 60 DAT Day after transplanting are presented in the table 1. At 60 DAT maximum plant spread was found in T₅ (B + Mn + Zn) 52.8cm followed by 49.15 cm in T₉ (Zn). The minimum plant spread 29.76 cm and 43.89 cm was found T₀ (control)^3,6

Post-Harvest Observations

Bud or Head Diameter

Different micronutrients application significantly influenced the bud or head diameter over control. The maximum bud Diameter is 16.90 cm was recorded with T₅ (B + Mn +Zn) followed by 16.28 cm in T_{8 (}B +Zn) and T₇ (B + Mo + Mn + Zn) i.e. 15.73 cm, which were significantly higher than other. The lowest bud diameter (14.04 cm) was observed in treatment T₀ (control)^11,12,13

Bud or Head Weight

Table 2 shows that the bud weight was significantly influenced by the different treatment combination tried. The treatment T₅ (B + Mn + Zn) had significantly the highest bud weight (303.69 g followed by T₇ (B + Mo + Mn +Zn) was 287.61 g. Lowest bud weight 182.15 g was observed in T₀ (control),^12,13,14

Bud or Head yield per hectare

The table 2 shows that the treatment T₅ (B + Mn + Zn) and T₇ (B + Mo + Mn +Zn) had significantly more yield per hectare than other treatment (121.48 and 115.04 q/ha. The yield of treatment T₂ (Mo) and T₃ (Mn) was almost similar (96.99 and 96.71 q/ha, respectively. The treatment T₀ (control) recorded lowest yield per hectare (72.86 q/ha).^12,13,14,19

Figure 1:  Click here to View figure



Total soluble solid(⁰BRIX)

 There was a significant difference among various treatment combinations. The maximum T.S.S (⁰Brix) value T₅ (B + Mn + Zn) 8.37, followed by T₉ (Zn) 7.89. The lowest T.S.S (⁰Brix) value was recorded in T₀ (control) 6.46 Table 2.^14,19

Vitamin C (mg/100gm Broccoli fresh tissue)

Table 2 shows that the maximum vitamin C mg/100gm recorded (93.92 mg) in T₅ (B + Mn + Zn) followed by T₇ (Mo + Mn) 88.43 mg. The lowest vitamin was found in case of T₀ (control) 78.81 followed by (80.22 mg) T₂ (Mo).²²

Fresh weight of plant

The various treatment combinations significantly influenced the fresh weight of plant. In treatment T₅ (B + Mn +Zn) fresh weight of plant was highest (908.28 g followed by (867.65 g T₇ (B + Mo + Mn +Zn). The lowest fresh plant weight found in T₀ (control) 725.92 g.^13,19,22

Root weight

Table 2 shows that various treatment combinations significantly influenced the weight of plant root. In treatment T₅ (B + Mn +Zn) weight of root was highest (45.02 g followed by (43.91 g T₇ (B + Mo + Mn +Zn). The lowest root weight found in T₀ (control) 35.43 gm. The root weight in T₆ (Mo + Mn) and T₈ (B + Zn) had almost similar (43.19 g and 43.52 g respectively). Positive effects of micronutrients on bud or head diameter may be due to the better availability of soil nutrients that produced healthy plant with large vegetative growth, which reflected head diameter and improvement soil chemical and physical properties by using different micronutrients.^13,19,22

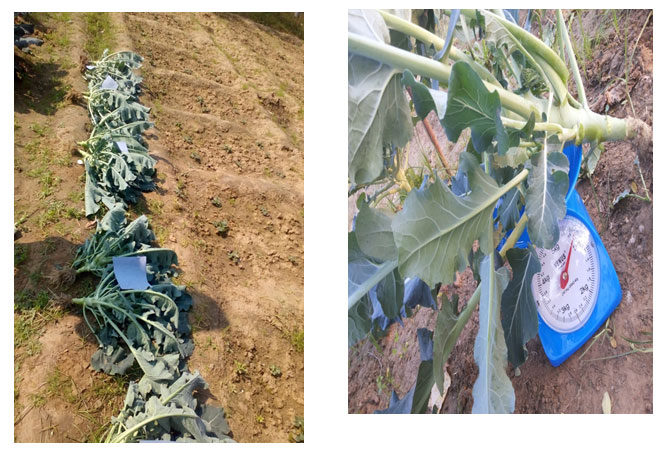

Figure 2: Click here to View figure



Conclusion

From the present investigation it was concluded that treatment T5 (B 2 kg/ha+ Mn 2.5 kg/ha +Zn 3 kg/ha) was found to be the best treatment combinations to obtain the higher growth, yield, and flower bud quality.

References

1. Abd El-All, H.M. Improving growth, yield, quality and sulphoraphan content as anticancer of broccoli (Brassica oleracea L. var. italica) plants by some fertilization treatments. Middle East Journal of Agriculture Research. 2014;3(1):13-19.
2. A.O.A.C. Official methods of analysis, 18 Edn. Association of Official Agricultural Chemists, Washington. 1960.
3. Brar, M.S. and Arora, C.L. Concentration of micro-elements and pollutant element in cauliflower (Brassica oleracea var. botrytis). Indian Journal of Agricultural Sciences. 1997;67(4):141-143.
4. Bose, T. K. Sprouting Broccoli. Vegetable crops. 2000;1:411-418.
5. Bouyoucous, D. G.J. Hydrometer Method for making partical size analysis of soli. Journal of Agronomy. 1952;54:464-465.
   CrossRef
6. Ghosh, S.K and Hasan. M.A. Effect of boron on growth and yield of cauliflower (Brassica oleracea var.botrytis). Annals Agricultural Research. 1997;18(3):391-392.
7. Gupta, U.C. Levels of micronutrient cations in different plant parts of various crop species. Communications in soil science and plant analysis. 1990;21(13-16):1767-1768.
   CrossRef
8. Heywood, V. H. Flowering plant of the world. Mayflower Books, New York. 1978:2-3.
9. Jackson, M.L. Soil Chemical Analysis. Prentice Hall of India Private Ltd., New Delhi. 1958.
10. KP Singh, VK Singh, Kamalkant and RK Roy. Effect of different levels of boron and its methods of application on growth and yield of cauliflower (Brassica oleracea var. botrytis L.). Vegetable Science. 2011;38(1):76-78.
11. M. Islam, M.A. Hoque, M.M. Reza and S.P. Chakma. Effect of boron on yield and quality of broccoli genotypes.  Int. J. Expt. Agric. 2015;5(1):1-7.
12. M. N. Alam . Effect of Boron Levels on Growth and Yield of Cabbage in Calcareous Soils of Bangladesh. Research Journal of Agriculture and Biological Sciences. 2007;3(6):858-865.
13. M Narayanamma, Ch Chiranjeevi and S Riazuddin Ahmed. Effect of Foliar Application Of Micronutrients On The Growth, Yield and Nutrient Content Of Cabbage (Brassica Olfracea L Var. Capitata) In Andhra Pradesh. Veg. Sci. 2007;34(2): 213-214.
14. Mohamed El-Sayed Ahmed, Abdelnaser and Abdelghany Elzaawely. Effect of the Foliar Spraying with Molybdenum and Magnesium on Vegetative Growth and Curd Yields in Cauliflower (Brassica oleraceae var. botrytis L.) World Journal of Agricultural Sciences. 2011;7(2):149-156.
15. Nirmal De; Singh, K. P.; Benerjee, M. K. and Rai, M. Exotic vegetables-Technical Bulletin Indian Institute of Vegetable Research, Varanasi, India. 2004;21:4-6.
16. Olsen, S.R., Cole, C.V., Watannhe, F.S. and Dean, L.A. Estimation of available phosphorus in soil by interaction with sodium bicarbonate. U.S. Deptt. Agri. Circ. 1954;939.
17. Parsad, M.B.N.V and Singh,D.P., Varietal screening in cauliflower against boron deficiency. Indian journal of horticulture. 1988;45(3-4):307-311.
18. R. F. Lucas and B. D. Knezek. Climatic and Soil Conditions Promoting Micronutrient Deficiencies in Plants. Micronutrients in Agriculture. Soil Science Soc. of America. 1973.
19. Saha, P.. Chatterjee, R., Das. N.R. and Muknopadhyay D. Response of sprouting broccoli (Brassica oleracea var. italica) to foliar application of boron and molybdenum under terai region of West Bengal. Indian Journal of Horticulture. 2010;67(Special Issue):214-217.
20. Santosh Kumar, Singh S., Singh P.K. And Singh Viveka N. Response of cauliflower (brassica oleracea l. Var. Botrytis) to boron and molybdenum application. Indian Institute of Vegetable Research, Varanasi. Veg. Sci. 2010;37(1):40-43.
21. Sharma, S. R. Broccoli vegetable crops production. Div. of vegetable crops, India. 2003;50-52.
22. Kumar Suresh P, Bhagawati R, Choudhary Vk, Preema Devi and Ronya T Effect of boron and molybdenum on growth, yield and quality of cauliflower in mid altitude condition of Arunachal Pradesh. Veg. Sci. 2010;37(2):190-193
23. Subbaiah, B.V. and Asija, C.L. Arapid procedure for the estimation of available nitrogen in soil. 3Current Sci. 1956;25:425-426.
24. Varghese, A. and Duraisami, V.P. Effect of boron and zinc on yield, quality and mineral content of cauliflower (Brassica oleracea var, botrytis). South Indian Horticulture. 2005;53(1):126-130.
25. Walkley, A. and Black, I.A. Quantifying the underestimation of soil organic carbon by the Walkey and Black technique. Soil sci. 1934;37:39.
